Smarte™

Smarte™ is the state of the art and first of its kind technology from Inesh. The innovative concept from INESH makes the samrt meter making smarter, better and faster. All in one SMS (smart metering system on a Module) come with all the intelligence of metrology,communciation, tampers and display perameters built in with inbuilt DLMS.

Smarte™ is the best choice of a meter maker

You can build your smart meter at ease

Simple to use

Configurable perameters

Mutiple standard protocols

Complies Indian and Ineternational metering standards

Build your Smart meter at ease

Smarte is a revolutionary innovation of INESH in meerign industry. Its a simple easy to use mother board of a smart meter. With the smarte module a meter manufacturer can easily build his own smart meter without even knowing the smart meter technology. Inesh samrte module makes the smart meter building smarter, faster and better. INESH smarte starter KIT contains one set of Smarte module and one evaluation board and How to build smart meter - smart meter building guide. The smart meter building guide comes in handy easy to use form factor which helps the meter designer to build his own smart meter.

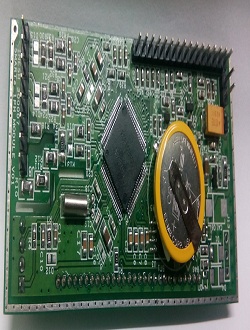

Smarte module is integrated with

• Analog Front End
• MCU
• EEPROM for Block Storage
• Oscillator & PLL
• Battery for RTC Backup
• LCD Driver
• Optical Port Driver
• Latch Relay Driver
• Serial Port for Optical, AMI and IHD
• Metrology Engine
• Selectable Display Parameters in Auto and Push Mode
• Protocol Stacks
  • DLMS
  • MODBUS
  • IEC 62056-21 Mode –C
• Computing Engines for
  • Tamper Detection/ Storage
  • Auto / Manual Billing Computation
  • Maximum Demand Calculation with Block or Sliding Window
  • Power Failure Detection and Storage

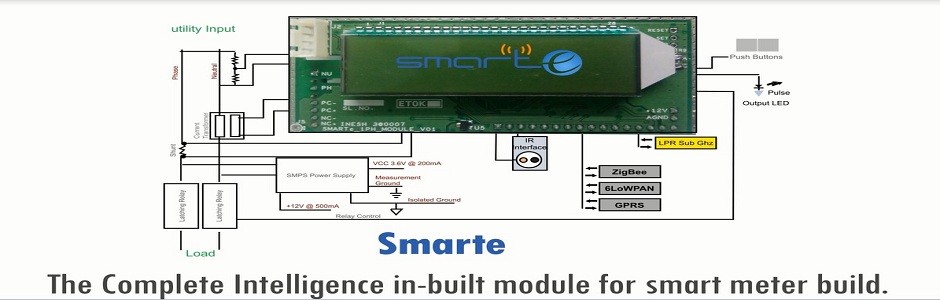

 The Smart meter designer needs to select and add only the below peripherals to build a Single Phase/ Three Phase Smart Meter

• CT
• Shunt (For Single Phase)
• Latching Relay
• Power Supply
• Communication Module

• 4-Quadrant Energy  – Import & Export Measurements
• Supporting Maximum Demand – Import & Export.
• Capability to support Feed-in Tariffs
• Support reliable two-way communication, via the WAN, between the meter and authorized parties of periodic (half-hourly) data and other defined information within defined timescales
• Interface full range of communication technologies embraced by the overall Communications system
• Support power outage detection by remote interrogation of Meter Energisation status via the communications system.
• Provide synchronized time-stamped power outage / restoration information to authorized parties via the communications system.
• Store, and provide on demand, voltage profile data to authorized parties via the communications system
• Capability of detecting a potentially dangerous over or under voltage condition and will be capable of configuration to either (or both) transmit an alarm or (and) initiate disconnection through the meter’s integral automatic cut-off switch.
• Provide basic (Voltage Sag / Swell) Power Quality Monitoring functionality which may be interrogated by authorized parties via the communications system.
• Support multi-rate (TOD / CPP / Dynamic Pricing) tariff structures and a configurable combination of register types.
• A configurable (and remotely controllable) cut-off switch designed to operate automatically if the customer’s load exceeds a predefined limit and duration
• Detect and guard against tampering and unauthorised access to the meter terminals.
• Support safety features including detection of excessive contact temperature and reverse polarity.
• Plug and Play Device Commissioning
• Interoperability for Meters/Devices at Application Layer
• Hardware Component Interoperability
• Customer Supply (Safety) Monitoring
